The Bipedal Walking Robot is a new addition to the Educational Construction Series. Walking Robot moves by transferring its weight. When the weight transfer unit, which is composed of a gearbox and battery case, moves right, and left, the model rocks and its legs move forward.
Length: 85mm, width: 132mm, height: 107mm (138mm with guide rod attached)
-Weight: approximately 138g (including batteries).
-Two separately sold AAA batteries are required. Continuous running time: about 2 hours.
-Gear ratio: 114.7:1. Includes low rpm type 130 motor.
-Speed: about 4.8cm/s (170m/h) (The model moves 1m in about 20 seconds.)
-Running on even surfaces is recommended.
-Features light gray plastic parts.
-The legs and plastic slides have holes to attach parts such as universal shafts, arms, and your original parts by tapping screws. Enjoy changing its appearance!
-Easy snap-fit/screw-together assembly.
-Challenge level: 3 (5 is the highest.). Approximate assembly time: 120 – 180 minutes.
All models are supplied as kits and will need to be assembled and painted.

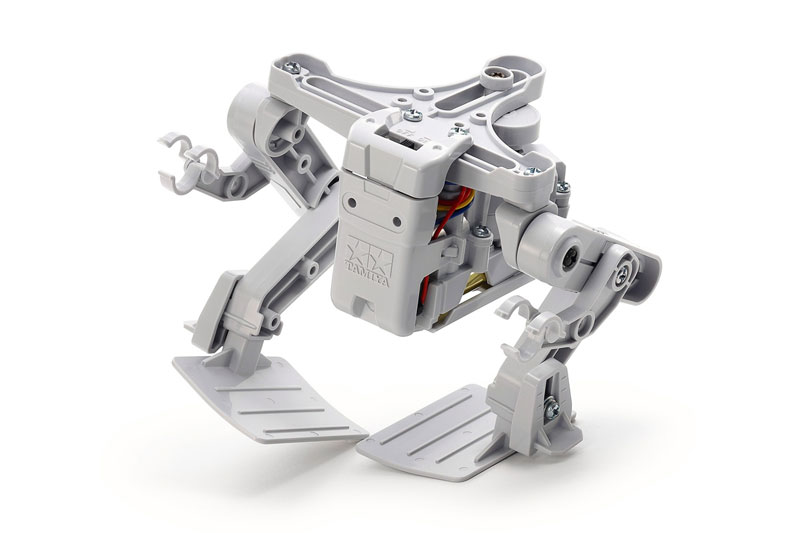

The picture illustrates how the model should look once completed.
Glue and paint are not included in the kit.
Type = Models
Material = Plastic
Finish = Unfinished Model Kit
Date of Release = 2023-10-05
Status = Available
